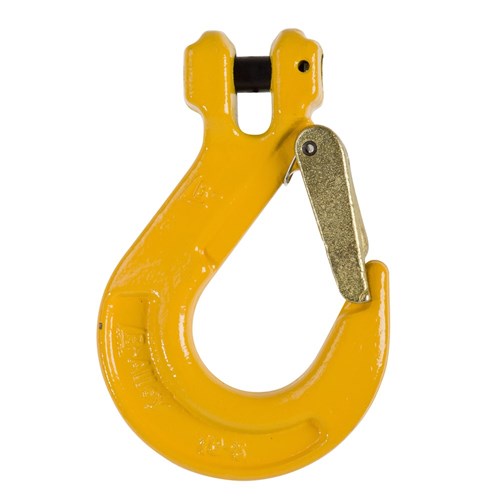

BELW G80 Clevis Sling Hookwith Safety Latch

80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing in done throughout the manufacturing process. These components also carry distinguishing marks for easy identification.

Product code Chain Size WLL e d h b g Approx Weight
GKN-06 6mm 1.1t 76.4mm 7.8mm 20mm 77.4mm 24mm 0.23kg
GKN-08 7-8mm 2t 86mm 9.3mm 25mm 85mm 27mm 0.48kg
GKN-10 10mm 3.2t 104mm 13mm 31mm 103mm 33.5mm 0.95kg
GKN-13 13mm 5.3t 127.8mm 16.4mm 42.5mm 127.5mm 40mm 1.85kg
GKN-16 16mm 8t 148mm 21.3mm 54mm 161mm 51mm 3.94kg
GKN-20 20mm 12.5t 179mm 24.3mm 58mm 188mm 59mm 6.36kg
GKN-22 22mm 15t 215mm 26.3mm 60.4mm 229mm 79mm 10.4kg
